| Vendor | Netgear |
|---|---|
| Device name | MR814v2 - 802.11b Cable/DSL Wireless Router (support page) |
| FCC ID | PY3MR814v2 |

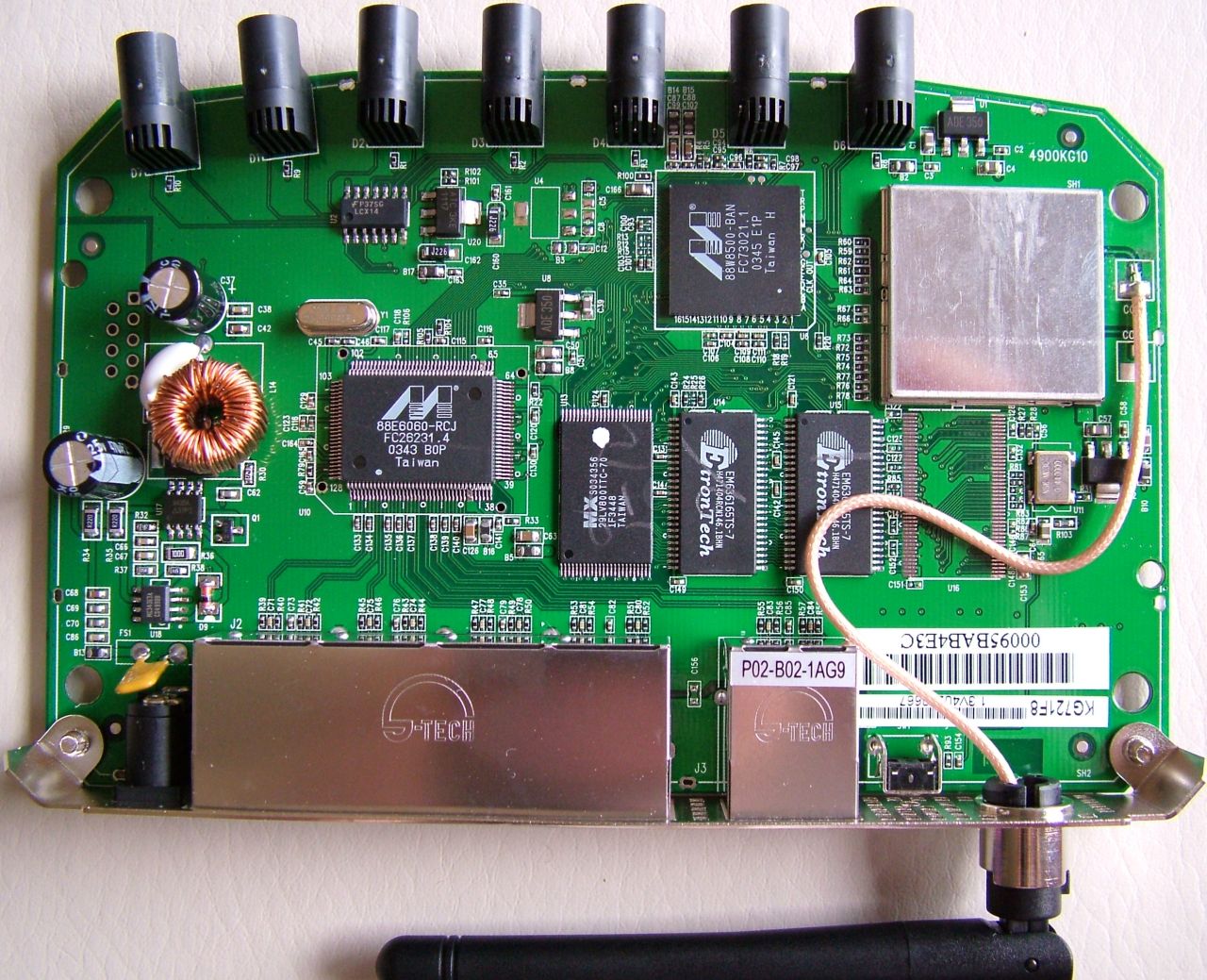

| Description | The MR814v2 has an integrated 4-port switch with 10/100 Ethernet ports for directly connecting up to four computers, and act as a 802.11b Wifi access point. |
| Notes | On the silkscreen: UNIC 3 94V-0H |
| CPU |
Marvell 88E6208 - LGO
802.11b Access Point Solution Chipsep with an embedded ARM946 CPU. |
|---|---|
| Flash memory |
MX 29LV800TTC-70
3 Volt Fast Boot Block Flash Memory (512Kbit x 16) Total : 1 Mbyte |
| SDRAM memory |
EtronTech EM636165TS-7
1Mx16 Synchronous DRAM (SDRAM) 2 chips onboard. Total 4 Mbyte |
| Switch |
Marvell 88E6060
6-Port Fast Ethernet Switch |
JP1 : 3 pads
J5 : 20 (2x10) pads - likely to be the ARM9 JTAG connector (passive components missing)
J4 : 9 pin serial connector header - RS232 level shifter missing
No information yet. Did not find any OS copyright string in the firmware.
